首頁本公司生產12大類約119種攪拌器,從常見的包括已有的HB5標準、SB90標準的各種復雜形式或特殊用途的攪拌器,廣泛應用在化工、醫療、食品等行業不同介質、不同粘度的攪拌之用。我公司也可以根據用戶生產工藝需求,代為設計制造各種特殊要求、特殊規格或用途的攪拌器。
| 序號 | 攪拌器 型式 |
與Y軸 夾角θ° |
常用尺寸 | 常用運轉條件及 粘度范圍 |
流動狀態 | 適用范圍 | 備注 |
| 85 86 87 |
ZHX ZCK ZWX |
45 | DJ/D=0.2～0.5 b/DJ=0.2 Z=3 |
μ＜10000cp n=60～500rpm |
綜合了推進式槳和斜葉渦輪式槳的特性,屬軸流型,循環能力大,動力消耗小,且剪切性能得到了提高. | 低粘度液的混合、分散、溶解、固體懸浮、結晶、傳熱、液相反應、氣體吸收。 | |
| 88 89 90 |
KHX KCK KWX |
60 | DJ/D=0.2～0.5 b/DJ=0.4 Z=3 |
μ＜10000cp n=30～500rpm V=3～15m/s |
性能和上面三窄葉旋槳式相同,但寬葉其排出流量大些,輸入功率也大些. | ||
| 91 | ZSX | 60 | DJ/D=0.2～0.5 b/DJ=0.2 Z=4 |
性能和上面三葉旋槳式相同,但循環能力相對較大,動力消耗相對較大,更適于需要更大功率的情況.寬葉之下可多存一些氣體,使氣體分散更平穩(如在發酵罐中的使用) | |||
| 92 | KSX | 60 | DJ/D=0.2～0.5 b/DJ=0.4 Z=4 |

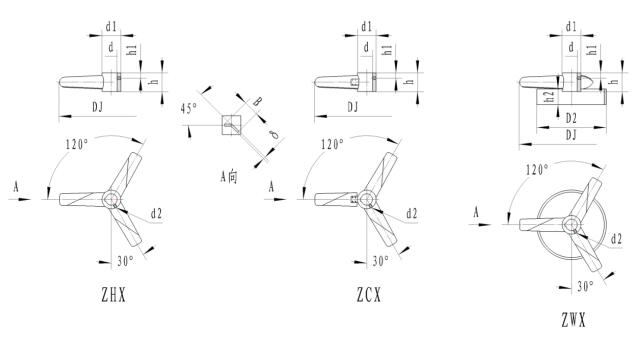

三窄葉旋槳式攪拌器
85、三窄葉整體旋槳式ZHX 86、三窄葉可拆旋槳式ZCX
87、三窄葉穩定環旋槳式ZWX
| DJ | d | d1 | h | B | h1 | d2 | h2 | D2 | δ | 重量不銹鋼/碳鋼 | ||
| 不銹鋼/碳鋼 | ZHX | ZWX | ZCX | |||||||||
| 200 | 25 | 50 | 50 | 40 | 20 | M6 | 30 | 135 | 3/4 | 0.97/0.98 | 1.272/1.380 | 1.57/1.58 |
| 220 | 30 | 60 | 60 | 44 | 20 | M6 | 35 | 150 | 3/4 | 1.5/1.47 | 1.891/1.988 | 2.4/2.37 |
| 250 | 35 | 70 | 70 | 50 | 20 | M8 | 38 | 170 | 4/6 | 2.25/2.30 | 2.891/3.256 | 3.48/3.53 |
| 280 | 35 | 70 | 70 | 56 | 20 | M8 | 42 | 190 | 4/6 | 2.38/2.48 | 3.172/3.661 | 3.61/3.71 |
| 320 | 40 | 75 | 75 | 64 | 25 | M8 | 50 | 215 | 6/8 | 3.38/3.5 | 4.981/5.621 | 5.06/5.18 |
| 360 | 40 | 75 | 75 | 72 | 25 | M8 | 55 | 240 | 6/8 | 3.71/3.92 | 5.676/6.524 | 5.39/5.6 |
| 400 | 45 | 80 | 80 | 80 | 25 | M10 | 60 | 270 | 8/10 | 5.09/5.36 | 8.306/9.355 | 6.8/7.07 |
| 450 | 50 | 85 | 85 | 90 | 25 | M10 | 70 | 300 | 8/10 | 6.03/6.41 | 10.2/11.59 | 7.92/8.3 |
| 500 | 55 | 90 | 90 | 100 | 25 | M12 | 75 | 335 | 8/10 | 7.2/7.63 | 12.19/13.83 | 10.62/11.05 |
| 560 | 60 | 100 | 100 | 112 | 25 | M12 | 85 | 375 | 10/12 | 10.83/11.35 | 18.74/20.78 | 14.55/15.07 |
| 630 | 65 | 105 | 105 | 126 | 30 | M12 | 95 | 420 | 10/12 | 13.19/13.19 | 23.09/25.72 | 17.06/17.78 |
| 710 | 70 | 110 | 110 | 142 | 30 | M12 | 105 | 475 | 10/12 | 15.44/16.46 | 27.82/31.22 | 20.33/21.35 |
| 800 | 75 | 120 | 120 | 160 | 30 | M12 | 120 | 535 | 12/14 | 22.5/23.68 | 41.62/45.87 | 27.75/28.93 |
| 900 | 80 | 130 | 130 | 180 | 30 | M12 | 135 | 600 | 12/14 | 29.24/30.77 | 53.36/58.76 | 34.82/36.35 |
| 1000 | 85 | 140 | 140 | 200 | 30 | M12 | 150 | 670 | 12/14 | 37.03/38.4 | 66.961/73.13 | 44.2/45.57 |
| 1120 | 90 | 150 | 150 | 224 | 30 | M12 | 165 | 750 | 14/16 | 50.77/52.89 | 93.77/101.12 | 58.48/60.6 |
| 1250 | 100 | 160 | 160 | 250 | 30 | M16 | 190 | 840 | 14/16 | 62.37/72.67 | 126.2/136.5 | 70.77/73.56 |
| 1400 | 110 | 180 | 180 | 280 | 30 | M16 | 210 | 940 | 14/16 | 82.09/85.5 | 150.68/163.39 | 92.65/96.06 |
| 1600 | 120 | 190 | 190 | 320 | 30 | M16 | 240 | 1070 | 16/18 | 114.77/119.23 | 216.7/233.2 | 125.84/130.3 |
| 1800 | 130 | 200 | 200 | 360 | 35 | M16 | 270 | 1200 | 16/18 | 142.5/148.5 | 271.2/292.3 | 154.2/160.2 |
| 2000 | 140 | 210 | 210 | 400 | 35 | M16 | 300 | 1340 | 16/18 | 173.59/182.60 | 333.2/361.1 | 185.8/194.9 |
| 2240 | 150 | 220 | 220 | 448 | 35 | M18 | 335 | 1500 | 18/20 | 238.53/247.63 | 463.0/495.5 | 252.6/261.7 |
| 2500 | 160 | 240 | 240 | 500 | 40 | M18 | 375 | 1670 | 18/20 | 287.68/305.16 | 567.4/614 | 302.8/320.3 |

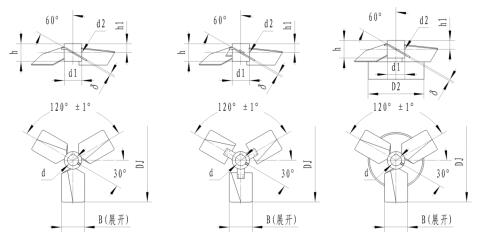

三寬葉旋槳式攪拌器
88、三寬葉整體旋槳式KHX 89、三寬葉可拆旋槳式KCX 90、三寬葉穩定環旋槳式KWX
| DJ | d | d1 | h | B | h1 | d2 | h2 | D2 | δ | 重量不銹鋼/碳鋼 | ||
| 不銹鋼/碳鋼 | KHX | KCX | KWX | |||||||||
| 200 | 25 | 50 | 50 | 80 | 20 | M6 | 50 | 135 | 4/6 | 1.168/1.411 | 2.018/2.231 | 1.838/2.41 |
| 220 | 30 | 60 | 60 | 80 | 20 | M6 | 55 | 150 | 5/6 | 1.89/1.981 | 2.182/3.234 | 2.913/3.202 |
| 250 | 35 | 70 | 70 | 100 | 20 | M8 | 60 | 170 | 5/6 | 2.723/2.847 | 4.304/4.274 | 3.99/4.356 |
| 280 | 40 | 75 | 75 | 112 | 20 | M8 | 65 | 190 | 5/6 | 3.285/3.45 | 5.32/5.393 | 4.818/5.277 |
| 320 | 45 | 80 | 80 | 128 | 25 | M8 | 70 | 215 | 5/6 | 4.065/4.3 | 6.221/6.363 | 5.933/6.529 |
| 360 | 50 | 85 | 85 | 144 | 25 | M8 | 80 | 240 | 5/6 | 4.886/5.207 | 7.172/7.175 | 7.02/7.752 |
| 400 | 55 | 90 | 90 | 160 | 25 | M10 | 90 | 270 | 6/8 | 6.398/7.377 | 10.21/11.04 | 10.02/12.17 |
| 450 | 60 | 100 | 100 | 180 | 25 | M10 | 100 | 300 | 6/8 | 8.515/9.734 | 12.63/13.69 | 12.98/15.65 |
| 500 | 65 | 105 | 105 | 200 | 25 | M12 | 105 | 335 | 6/8 | 10.286/11.82 | 14.72/16.11 | 15.54/18.76 |
| 560 | 70 | 110 | 110 | 224 | 25 | M12 | 110 | 375 | 8/10 | 14.29/16.36 | 19.75/21.61 | 22.48/26.53 |
| 630 | 75 | 120 | 120 | 252 | 30 | M12 | 120 | 420 | 8/10 | 18.58/21.11 | 24.4/26.39 | 28.59/33.54 |
| 710 | 80 | 130 | 130 | 284 | 30 | M12 | 130 | 475 | 10/12 | 27.66/31.06 | 33.81/26.39 | 42.99/49.33 |
| 800 | 85 | 140 | 140 | 320 | 30 | M12 | 140 | 535 | 10/12 | 35.28/39.38 | 43.02/46.79 | 53.87/61.56 |
| 900 | 90 | 150 | 150 | 360 | 30 | M12 | 145 | 600 | 12/14 | 51.79/57.18 | 60.07/65.10 | 77.7/87.27 |
| 1000 | 100 | 160 | 160 | 400 | 30 | M12 | 150 | 670 | 12/14 | 61.88/68.46 | 70.97/77.19 | 91.81/103.9 |
| 1120 | 110 | 180 | 180 | 448 | 30 | M12 | 155 | 750 | 14/16 | 90.53/98.49 | 101.8/169.3 | 130.9/144.4 |
| 1250 | 120 | 190 | 190 | 500 | 30 | M16 | 160 | 840 | 14/16 | 110.6/120.7 | 122.3/132 | 157.3/173.8 |
| 1400 | 130 | 200 | 200 | 560 | 30 | M16 | 170 | 940 | 16/18 | 151.2/164.1 | 163.6/175.9 | 214.6/235.1 |
| 1600 | 140 | 210 | 210 | 640 | 30 | M16 | 180 | 1070 | 16/18 | 193.2/210.5 | 206.1/222.8 | 269.7/296 |
| 1800 | 150 | 220 | 220 | 720 | 35 | M16 | 190 | 1200 | 18/20 | 266.2/288.3 | 281.9/303.4 | 368.1/400.8 |
| 2000 | 160 | 240 | 240 | 800 | 35 | M16 | 220 | 1340 | 18/20 | 334.4/361.8 | 351.2/377.8 | 466.1/507.2 |
| 2240 | 170 | 250 | 250 | 896 | 35 | M18 | 240 | 1500 | 20/22 | 453.4/488.2 | 469.5/503.5 | 632.2/683.5 |
| 2500 | 180 | 260 | 260 | 1000 | 40 | M18 | 250 | 1670 | 20/22 | 559/602.9 | 575.4/618.4 | 766.2/829.5 |

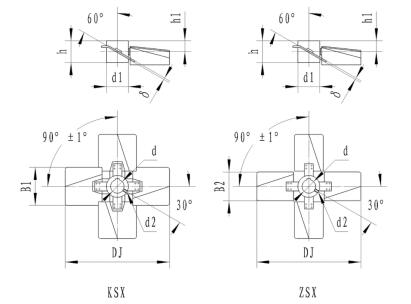

四葉旋槳式攪拌器
91、四窄葉可拆旋槳式ZSX 92、四寬葉可拆旋槳式SKX
三葉旋槳式攪拌器主要尺寸
| DJ | d | d1 | h | B1 | B2 | h1 | d2 | δ | 重量 不銹鋼/碳鋼 | ||
| 不銹鋼 | 碳鋼 | KSX | ZSX | ||||||||
| 200 | 25 | 50 | 50 | 80 | 40 | 20 | M6 | 3 | 4 | 2.404/2.698 | |
| 220 | 30 | 60 | 60 | 80 | 44 | 20 | M6 | 3 | 4 | 3.776/3.858 | |
| 250 | 35 | 70 | 70 | 100 | 50 | 20 | M8 | 4 | 6 | 5.064/5.176 | |
| 280 | 40 | 75 | 75 | 112 | 56 | 20 | M8 | 4 | 6 | 6.32/6.452 | |
| 320 | 45 | 80 | 80 | 128 | 64 | 25 | M8 | 6 | 8 | 7.41/7.643 | |
| 360 | 50 | 85 | 85 | 144 | 72 | 25 | M8 | 6 | 8 | 8.558/8.906 | |
| 400 | 55 | 90 | 90 | 160 | 80 | 25 | M10 | 8 | 10 | 12.494/13.646 | |
| 450 | 60 | 100 | 100 | 180 | 90 | 25 | M10 | 8 | 10 | ||
| 500 | 65 | 105 | 105 | 200 | 100 | 25 | M12 | 8 | 10 | ||
| 560 | 70 | 110 | 110 | 224 | 112 | 25 | M12 | 10 | 12 | ||
| 630 | 75 | 120 | 120 | 252 | 126 | 30 | M12 | 10 | 12 | ||
| 710 | 80 | 130 | 130 | 284 | 142 | 30 | M12 | 10 | 12 | ||
| 800 | 85 | 140 | 140 | 320 | 160 | 30 | M12 | 12 | 14 | ||
| 900 | 90 | 150 | 150 | 360 | 180 | 30 | M12 | 12 | 14 | ||
| 1000 | 100 | 160 | 160 | 400 | 200 | 30 | M12 | 12 | 14 | ||
| 1120 | 110 | 180 | 180 | 448 | 224 | 30 | M12 | 14 | 16 | ||
| 1250 | 120 | 190 | 190 | 500 | 250 | 30 | M16 | 14 | 16 | ||
| 1400 | 130 | 200 | 200 | 560 | 280 | 30 | M16 | 14 | 16 | ||
| 1600 | 140 | 210 | 210 | 640 | 320 | 30 | M16 | 16 | 18 | ||
| 1800 | 150 | 220 | 220 | 720 | 360 | 35 | M16 | 16 | 18 | ||
| 2000 | 160 | 240 | 240 | 800 | 400 | 35 | M16 | 16 | 18 | ||
| 2240 | 170 | 250 | 250 | 896 | 448 | 35 | M18 | 18 | 20 | ||
| 2500 | 180 | 260 | 260 | 1000 | 500 | 40 | M18 | 18 | 20 | ||
